18" Cube Journal

[Morri]

Was nervous enough just fitting the weir if I dont get a good price on sump I will look at making myself



[owlbassboy]

should be easy enough to make have you contacted keith at windsor aquatics or ndaquatics about building a sump?? i would say keith would even be happy enough to advise you on the best way to go about it



[Morri]

Have requested a price from an LFS as it saves on fuel and wharf did a great price on my tank so asked them also a bit of a drive but can pop into a few LFS`s whilst there



[seffieuk]

Looking might fine

Seffie x



[owlbassboy]

Have requested a price from an LFS as it saves on fuel and wharf did a great price on my tank so asked them also a bit of a drive but can pop into a few LFS`s whilst there

you should work it out coz it might be cheaper to just get the sump tank then get the ballfes and stick them in yourself if you know where you want them. personally i havent a clue about sumps but if your wanting any help with your plans jus drop me a pm and ill get a mate of mine to look over them



[Morri]

Postie delivered most of the electronics needed for the LEDs so have done my test bench was very easy took photos al the way through so here they are

Step 1. all bits laid out

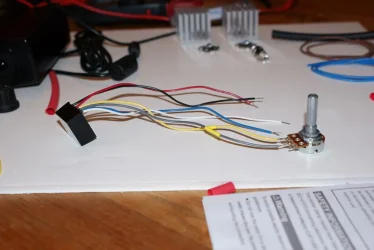

Step 2. Pot soldered onto Buckpuck

Step 3. Heat shrink over solder joints

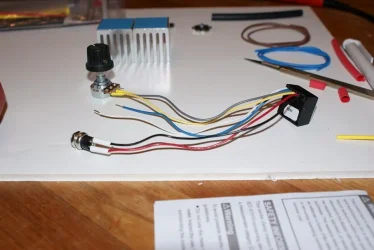

step 4. Female power connector connected to Buckpuck

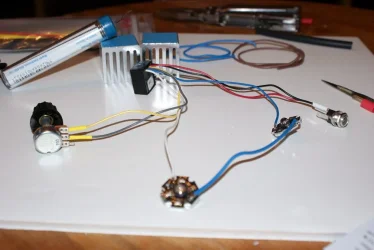

Step 5. LEDs connected to Buckpuck

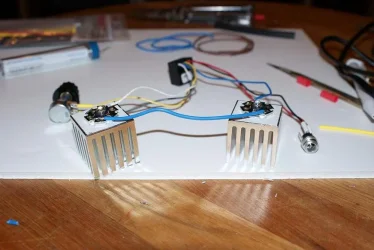

Step 6. LEDs mounted to heatsinks

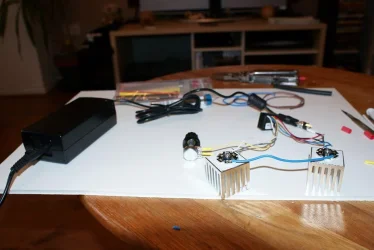

Step 7. Power supply connected up

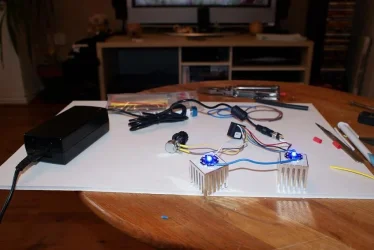

Step 8. test be very careful these are very very bright these pictures cannot show how bright they are



[bagu]

wow awesome! i love this kind of stuff!



[Morri]

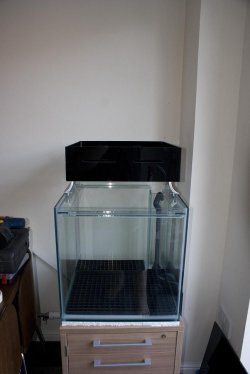

After a lot of help from my father in law here is the completed hood still waiting for my LEDs white to be shipped



.



[ben1987]

that hood looks propper quality, like you bought it



[Morri]

that hood looks propper quality, like you bought it

Thanks its just sheet acrylic and glue I am still in the design process for the LED / Heatsink holder



[SkiFletch]

Looks great Morris. Curious to know what you're using the pot for if you have buckpucks?



[Morri]

The pot is for manual brightness control



[john.o]

Looking really good m8t
Watching the led build with interest, ps where did you order the parts from?



[Morri]

The ordering parts is the worst part of the project White LEDs are from dealextreme in HK about £10 for 3 (bad lead times ) Buck Pucks are from ultraleds.co.uk and Bles LEDs are from dotlight.DE these are working out over twice the price of whites.

I am going with 12 whites and 6 blues to start out with and see if I can get the rigt colour with this setup if not I will add another 6 blues.



[seffieuk]

OMG - thought you said it was easy.......................

Will be watching with interest

Seffie x



ps looks real neat
