Hi alex thanks for your interest!
There has been some changes!
First I made a durso standpipe!
Ok so I have made a Durso standpipe! and it works excellent!!!
I cant believe how well it works!!
Tools used
Hacksaw
drill and 1/8th drill bit
stanley knife
file
Parts needed
2 mtr waste pipe 1 1/4 inch (for 1 inch bulkhead)
90 1 1/4 Knuckle bend
88.5 deg 1 1/4 Tee
1 1/4 cap with seal
90 1 1/4 push fit bend
PTFE tape
polypipe cement
Build Time
45 minutes
I couldnt find some of the bits recommended by Mr durso (is it richard I forget) So I have used common sense I purchased what I could on saturday afternoon from a High st retail DIY store that is orange!!

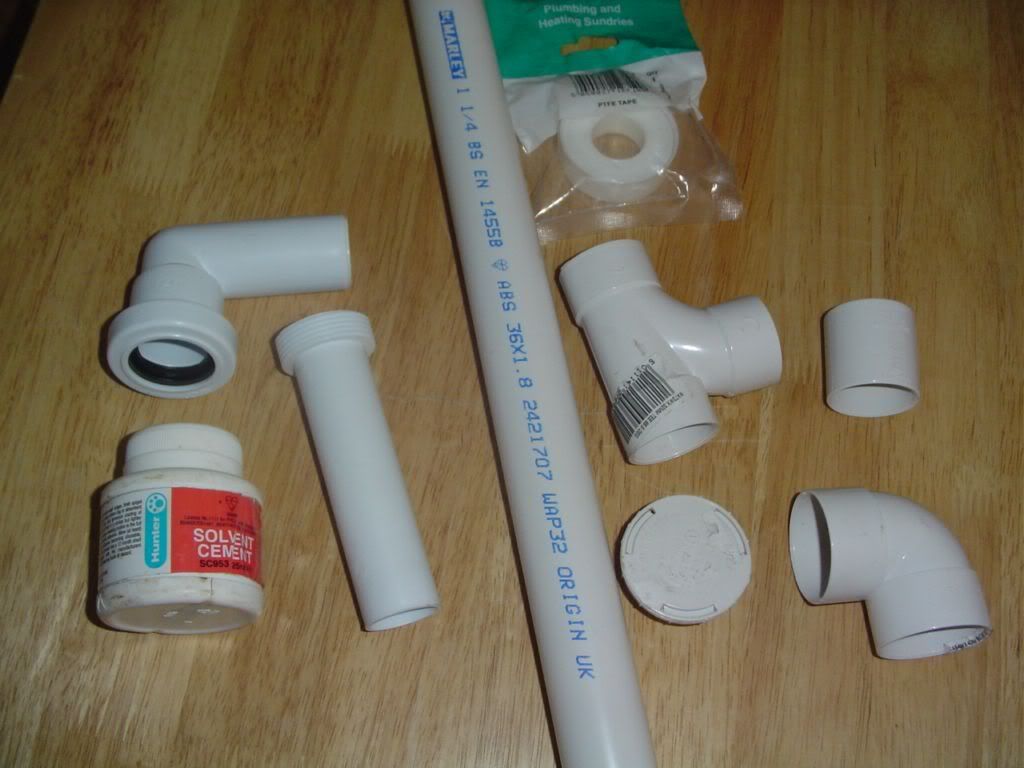

Ok so I nipped in to DIY shop this afternoon and spent about £6 for this lot

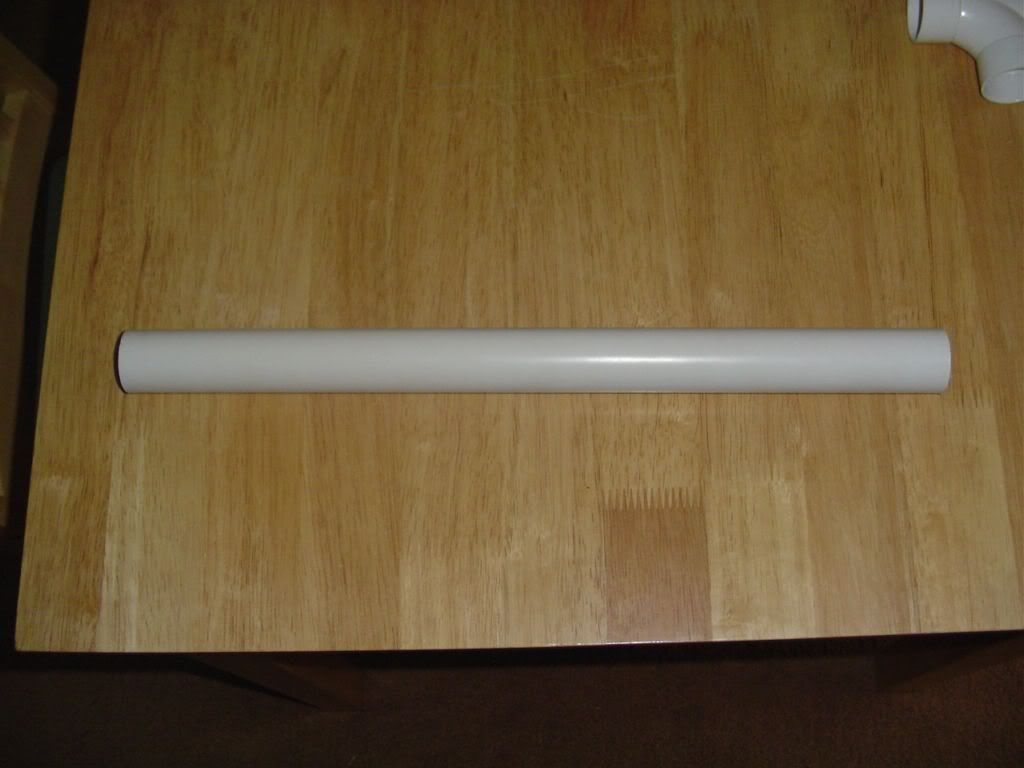

So I measured to top of the overflow and cut down the 1 1/4 waste pipe
Filed all the edges down for a neat fit,
This was how large it was before modding it

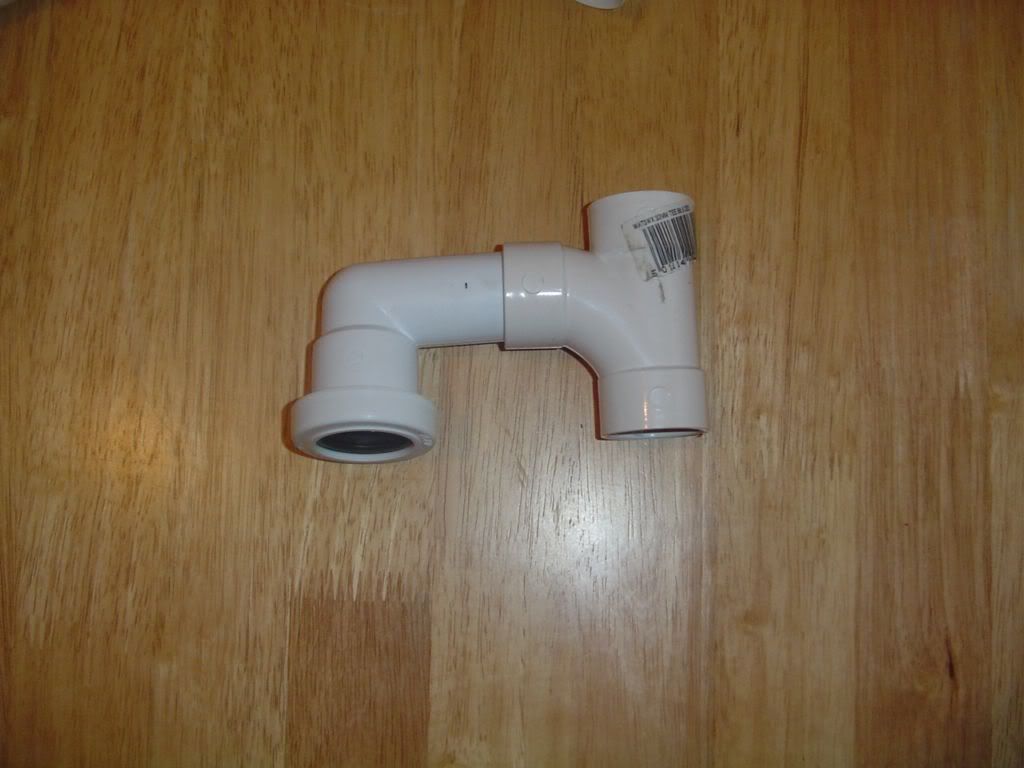

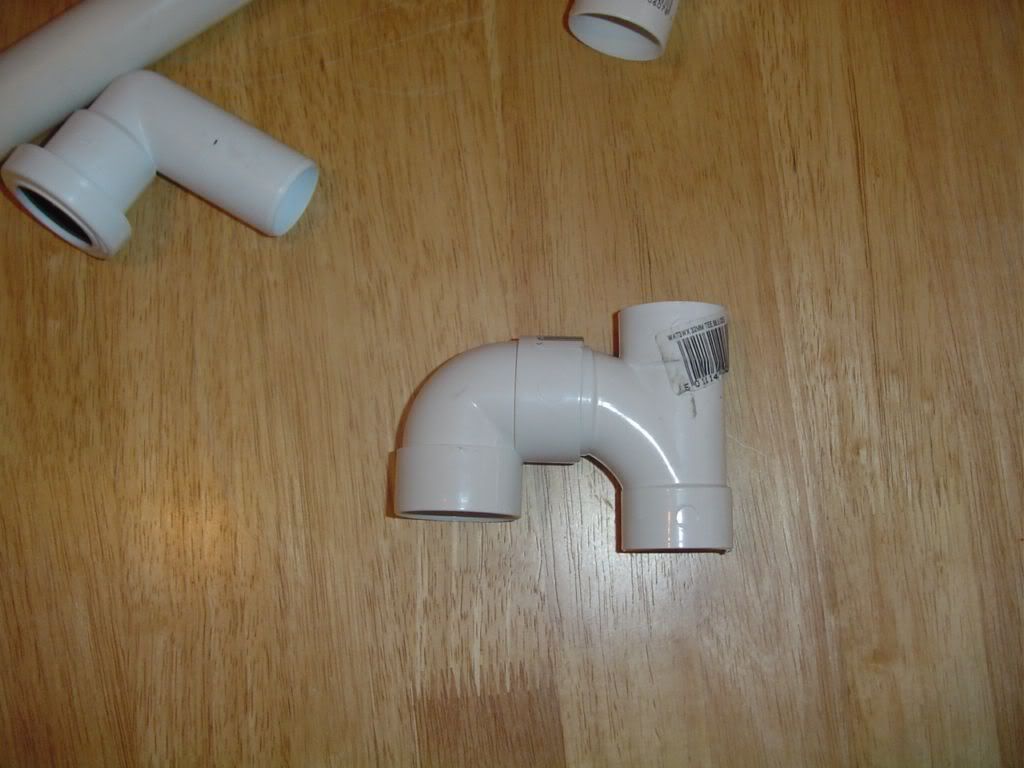

I have a narrow weir so I bought two types of 90 deg bends to work with.
and
It turns out neither of them fitted very well, so i used the first and cut it up, I cut the bottom piece first as this was nearly and extra qurter of an inch wider than pipe work, this was a bit better but it gave a distinct lean to the standpipe, So I cut the piece where it goes into the "T" so there was around 10mm and about the same on the "T" also, this gave an excellent result.

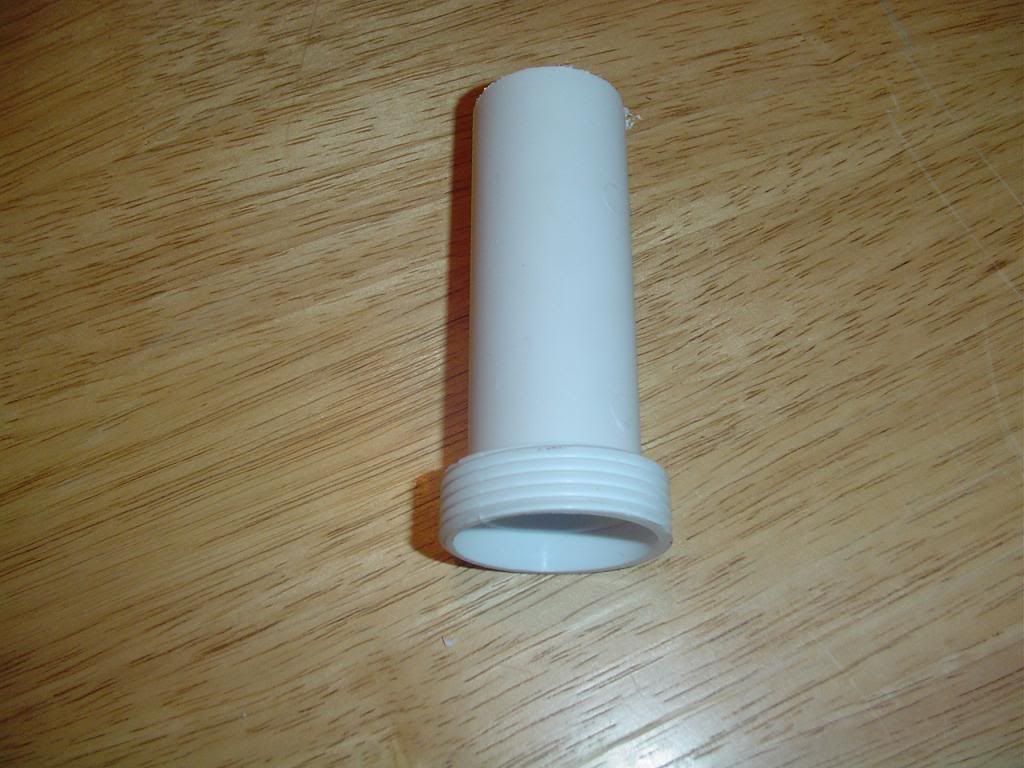

I then took the 1 inch threaded waste pipe extender and trimmed this down as my reducer pipe because my bulkhead isnt threaded and is obviously 1 inch wide,

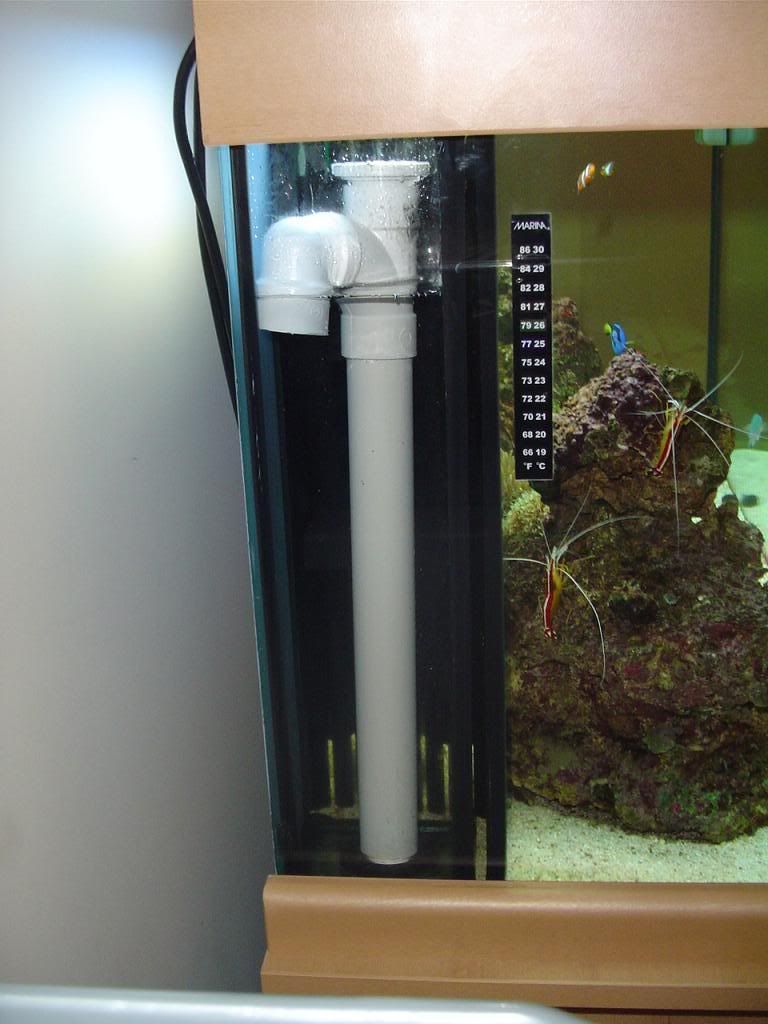

I then PTFE taped the bottom joined all pieces together, Got the cap and put a 1/8th drill hole in top and put it into tank and fired sump back up!
What you all think?
this is only first one I gonna re make it better of course!
I have only did this one quickly tonight to try out so it isnt glued only got PTFE tape holding it in place.
Also I have had a couple of new addittions!
Some coral
A purple mushroom and a bunch of mixed Zoo's
Also my cleaner shrimps have mated!!
If you look closely you can see the eggs by there rear legs! Not sure what to do about this?? Still reading up about it!
Found this link useful
Cleaner shrimp Breeding

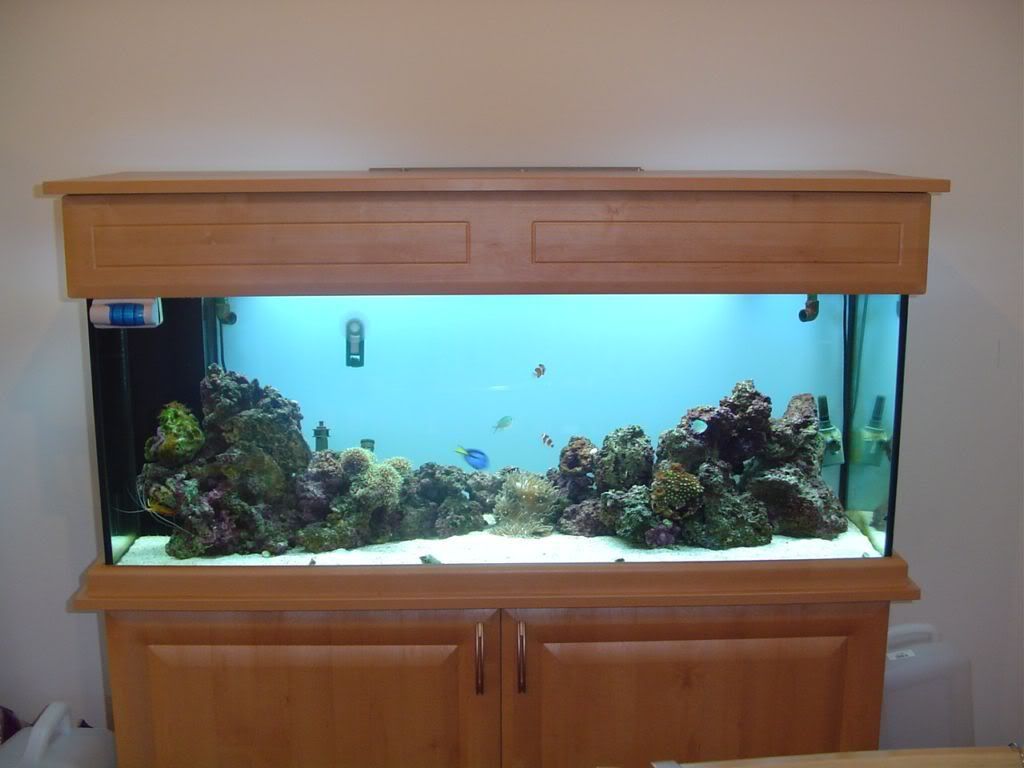

And of course the obligatory full tank shot!
All things considered doing well!
I am doing a south west (UK) Coral raid in december which should bring lots of new photos!!
Cant wait!
