Mega-powerful Nitrate And Phosphate Remover Replaces Skimmer, Refugium

[SantaMonica]

Update: Results of not cleaning

If you do not clean your screen in FW once a week (or at least put the whole screen in FW, and clean half of it), here is what happens:

1. Pods start growing and multipling in the bottom layers of the algae. They do this by eating more of the algae. They then get washed off into the water and get consumed.

2. The bottom layers of algae (attached to the screen) start getting shaded by the new algae that grows on top of it.

3. The bottom layers of algae (attached to the screen) start getting less flow, because they are being covered up by the new algae that grows on top of it.

4. The algae starts growing up into the slot in the pipe, causing less water to flow out.

5. The algae gets thicker and longer and heavier, and thus "lets go" from the screen easier.


The results of 1, 2, 3, and 4 above, is that the bottom layers (which you can't see because they are underneath) start dying and disolving back into the water. The result of #5 is that large pieces of algae on the top layers (that normally would be useful) also go into the water and die due to lack of light.

However, you don't see any of this. What you do see is that the growth seems to be great, but it gets to a certain point and stops. It seems to have "stopped growing". Also the nutrients start rising. So the tendancy of some folks is to leave it longer without cleaning it, so to give the algae "more time to grow". Big mistake.

What is happening is that the underlying layers are dying off so fast, that the algae is being removed from the bottom as fast as it is growing on the top. Kind of like building a second floor on top of a house, but then removing the first floor: You end up with a one-level house again. But then you take all the materials that you got from removing the first floor, and you use them to build a new second floor. But then you tear apart the first floor again, etc.

So what is happening is that the bottom layers (and the top layers that let go) are putting Inorganic Nitrate and Inorganic Phosphate back into the water, which gets used to grow new algae on the top layers again. So the scrubber can no longer filter your tank because it is so busy re-growing new layers to replace the old layers that died.

The easy solution to all of this is to just do your weekly cleaning in FW. And the solution to #5 (which really is the smallest problem) is to put a light-shield along the slot.



[SantaMonica]

Successes Update:

Labperck on the AR site, translated from Spanish as best possible: "My system is 130 liters, DIY skimmer, 5 pounds of live rock, aragonite substrate 3-4 cm, 1 crossbow bursa fish, 2 percula clowns, and 2 feather dusters. Nitrate remained at 40 mg/l with changes in water of 20 percent a week. With changes in water 20 percent weekly, there was no noticeable improvements. Started with the vodka method, nitrates lowered to 30 mg/l, with no change of water for 2 months. The display was filled with filamentous algae and cyano. Then I found this scrubber and decided to try it. Installed lighting on both sides, and started turning off the skimmer at night. A week later, the nitrates are at zero, and the water is more crystalline. For now I'm very happy with this filter, thank you SantaMonica, JulioVideo, and all those who put their advice."

Emporador on the AR site, translated from Spanish as best possible: "Best of all is that today is the first time in my life watching the NO3 test Salifert no3 = 0 ... I can not really believe. Apart from all my efforts to maintain a good filter system, this really gives the expected results."

RiaanP on the MASA site: "Scrubber is now over 3 months old, Phosphates and Nitrates used to be sky high, but now I got no PO4 or NO3 problems."

MarkM3 on the RS site: "Just want to say thanks to Santa Monica. i begin my double-screen 2 month ago for 180 gal heavey load fish, and few soft, lps corals, and i always had 80-100 nitrates from havey stock fish. and now for the first time in 2 years my nitrates level are ((((10 ppm)))) which is amazing, corals are much happier, and pop there polyps more and more, hair algee on the display and rocks almost gone, still have a few red slim but less than before, much more cleanner display and caroline is growing too. its true, its active, its working the algee scrubberrrrrrrrr. go go go gooooo so thanks again."

SimonSKL on the MD site: "Just an update. I have started my ATS [2 months ago] but changed screen material about 5 weeks ago. Today, I am happy to say all cyano have disappeared from my tank and 95% of the hair algae are gone also. I have to add that I did change the water flow pattern by modifying two of my Maxijet 1200 with the Sure Flow adaptors. One pushes 2100gph and the other 1600gph, in a wavemaking mode. The screens that I now used are plastic canvas and doubled layers. I am still getting really dark brown algae growing on the screens and cleaning them about every 5-6 days. "

Glock339 on the UR site: "I [originally] set up my current nano to be Miracle Mud eco system. However I never actually got round to planting any algae in the MM, as I set up an algae scrubber and my params went perfect in a few weeks. so I' happy with things the way they are and probably shouldnt have bothered with the MM. Dunno if this helps but I'd defo recommend considering a scrubber to anyone wanting to ditch the skimmer and phos reactor."

MyFishEatYourFish on the MFK site: "update. nitrates undetectable with my test strips, so probably like 10 ppm, which is half of what i started with, so thats cool. i don't have a phosphate test but algae growth has slowed way way down already and my sand is actually white now, my fish are sooooooo active now its kinda nuts, even my flame angel and blue tang follow me waiting for food. i have nothing but the scrubber on there now and the tank is better than ever! all secondary filteration has been romoved for about a week and everything is continueing to improve. on my sheets brown started and soon turned dark brown with some green patches. i cleaned when the brown was too thick to see the sheet and noticed quite a bit of green underneath. coralline has noticanly increased its growthrate already and algae growth has almost stopped in the display, or my algae eaters eat it faster than it can grow. the rocks "leaked" [phosphate] for just a couple days and now are almost completely nuissance algae free and looking great. i am really impressed with the speed and effectiveness of this thing. i think using fabric really helped because how well the agae spores catch and hold on. in my opinion it is superior to any medium tried yet."

Dragon1188 on the SG site: "Just like to share that i just simply use a piece of plastic sheet (the white color one u can buy from Popular bookshop and quite rough) inclined at 30 degree to catch the return water to my sump. The piece of plastic is lighted by 2x8watt of Philips "tornado" energy saver bulb running 24x7 [should be 18 hours]. The piece of plastic is just 46cm long and 40cm wide. Total water flow over it is about 2000L/hr. My tank and sump volume is 400 L. After 1months, green (both hairy and fern like) and red algae (matt) growing like crazy [on the screen]. Can harvest 1 fistfull every 3 days. I had even removed my phosphate reactor and skimmer. Its been running 4months now and my phosphate is about 0.01ppm and nitrate is 0."

Da_Gopherboy on the 3R site: "I also battled nitrates for a while, my tank was FOLR for a while before I desided to add coral. Since I didn't intend to go in that direction originally nitrates were not my concern. So I was stuck trying to figure out how to drop the nitrates without contant water changes, or buying a denitrator (US Economy makes me poor). I made an ATS scrubber that was fed by my overflow right above my refugium. Nitrates made almost an 80% decrease within less than 2 months."

DangerDave on 3R: "I have been running the turf scrubber close to 4 months now. I haven't done a water change in about 2 months now. I just top the tank off. I do not have to clean the glass every couple hours or everyday. I clean the glass about once or twice a week (I have to clean/scrap the coraline off more than the algae). Coraline has taken off, corals are flourishing, mushrooms are splitting like crazy, everything is doing superb."



[SantaMonica]

Scrubber FAQ 3.5 is now posted:

http/www.algaescrubber.net/forums/viewto...hp?f=9&t=68



[SantaMonica]

Update: Best Ready-To-Use Light

Aside from a custom-made T5H0 light panel (lots of lumens, really near the screen), the best overall light you can buy is something like this outdoor landscaping light:

It's non-rusting, non-corrosive, weatherproof, thin, temperature resistant, compact flourescent, bolt-on, adjustable, and the bulbs are replaced easily:

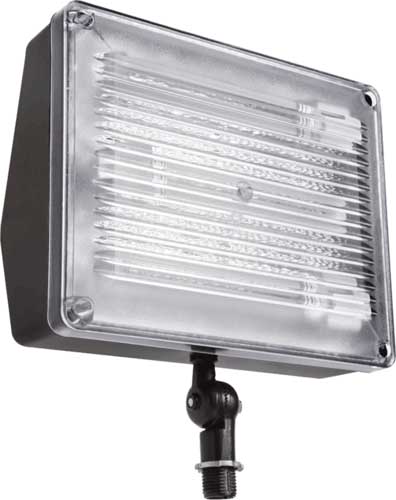

RAB PLF39 39W CFL Landscape Flood 120V:
http/www.prolighting.com/rabpl39wcfll.html

Housing and Lens: Corrosion and vandal resistant polycarbonate lens and housing.
Lamp: (3) 13W twin tube fluorescent GX23 (Included).
Lens Gasket: High temperature tubular silicone.
Finish: Architectural bronze.
Reflector: Anodized aluminum.
Voltage: 120 volts AC.
Mounting: Adjustable swivel mounting arm with 1/2" thread.
Size: 7.25" (18cm) wide, 9" (23cm) high, 3.5" (9cm) deep
Cost: $67 USD

This one is 39 watts (three bulbs) which is perfect for most screens, but they make smaller 26 and 13 watt (nano) size ones also. These types of light are surely available at larger home improvement stores, I just could not find them. Here are some other types too:

http/lightsofamerica.com/Products/9265.aspx
http/www.allproducts.com/manufacture100/...ng/product3.jpg
http/www.ec-securehost.com/positiveenerg...TING.html#PE565



[SantaMonica]

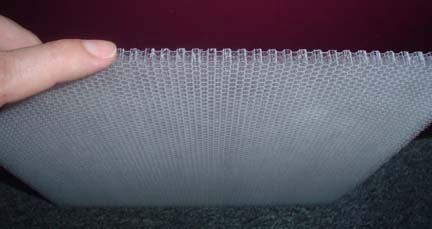

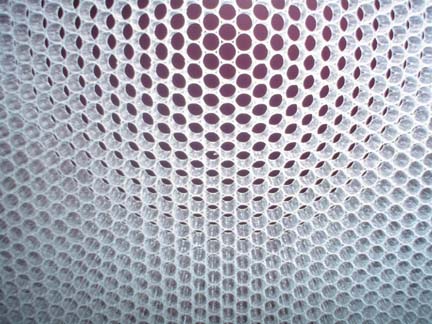

New Screen Material

Well after months of figuring out what are the best attributes are for a scrubber screen, and also after getting reports from hundreds of people as to what screen material worked best for them, I think I've come up with a material that is perfect for the job. I'm offering this screen for free to anyone who wants to try it (just pay shipping). Here are some pics, and some advantages, to this material:

It's Clear Plastic: This allows light from one side of the screen to shine through to the other side. For a (new) two-sided screen, this means both sides of the screen get light from both bulbs; for one-sided screens, it means the dark side will still get some light from the bulb on the other side.

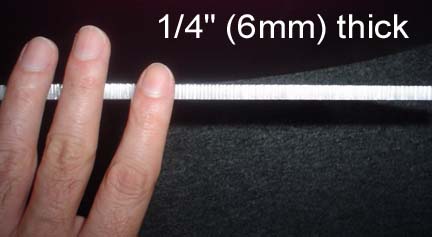

It's Thick: 1/4 inch (6mm). This allows much more room for algae to grip to, so washings/cleanings will not strip all the algae (no matter how hard you scrub). For total algae removal, you can just use a hair brush to push all the algae completely out. If you already have a pipe that is cut for canvas (usually a 1/8" or 3mm slot), you'll need to widen it to 5/16" (8mm).

It Flows Through: Since the screen is not solid, it allows algae from both sides to attach to each other in the middle, thus giving the algae even greater holding-power during cleanings and high flow.

It's Semi-Rigid: This gives a small screen enough strength to hold up a pipe by itself, and gives large screens the ability to prevent waviness, and from flopping out of position.

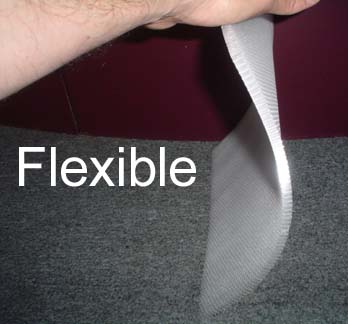

It's Bendable: You can put a large screen in a small sink for cleaning; it also is possible to bend the screen into a circular-screen configuration (i.e., inside a bucket.)

It Holds Roughness (after you rough it up). Attack it with 30 grit sandpaper, wire brushes, power sanders, etc, and the roughness will stay. Give yourself about one hour to rough up both sides.

It's Sturdy: It resists hard cleanings, even if you use fingernails, credit cards, or razors.

It's Reef Safe: Is made of standard hard-plastic material.

It can be used as-is for vertical screens, or it can be glued to a solid plastic sheet for horizontal screens (the sheet keeps water from flowing through the screen.)

So if anyone wants to try it, the screens I'm starting out with are a little smaller than a square foot; they are about 11.5" X 11.5" (29cm X 29cm). If you need two of these sheets to fit your scrubber, let me know. I'll keep the packing and shipping cost the same for everyone, $10 USD, including international. Paypal is easiest, but whatever works. PM me.



[SantaMonica]

I'm going to be posting new example designs soon, so if you have not already posted your pics, do so now and I'll include it for others to see.



[degsod]

I have been following this thread for a few months now and I have to say it looks very interesting, maybe when I eventually turn to the salty side I will give this ago.

What do other people think?



[SantaMonica]

66 new examples of scrubbers are now posted:

http/www.algaescrubber.net/forums/viewto...hp?f=3&t=26



[SantaMonica]

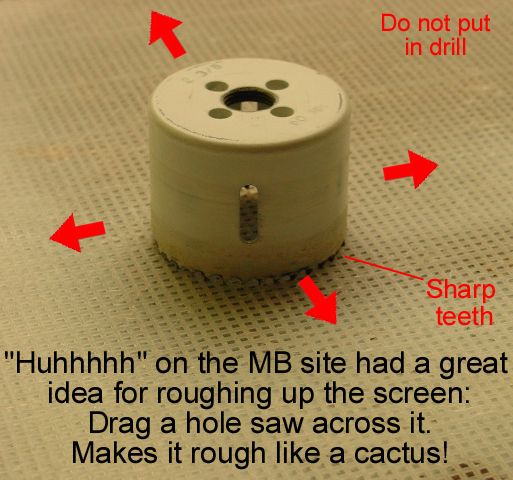

Update: Best way to rough up your plastic canvas:



[SantaMonica]

Update: Signs of scrubbers wearing out

Since my acrylic scrubber is approching one year old, it's the first one to experience signs of wearing out. Of course I'm also experimenting with large amounts of continuous feeding (which makes things worse), but I'm still seeing some of the same signs in other peoples' scrubbers, even though they are feeding normal amounts, and even though they've replaced the bulbs every 3 months. This is typically what starts happening:

Glass-cleaning is needed more often

Scrubber starts growing darker algae

pH stays at a lower point

Rocks get a light green covering

Cyano starts showing up

Nitrate and phosphate start staying at higher levels


What is probably happening (and what happened to mine) was that the flow had been greatly reduced to the scrubber. My screen is 22" wide, and only half of it was getting any flow at all (I'm surprised half of it did not die); the other half was still getting some flow, but it was so little that the bottom of the scrubber was almost dry. My problem was the pump:

This is a case of scrubbers causing their own unique problem. When you run a scrubber (without skimmers or mechanical filters), not only do the corals and small fish get much more of the food that you feed, but you will also grow all sorts of filter feeders like the ones you see all over the pump in the picture. They grew all through the display, of course (to be eaten by a wrasse), but they also grew up into the impeller area of the scrubber pump, which was the problem. Also in the pic, you can see the brown stuff which was the result of my experiment in large amounts of continuous feeding in a system with a poorly designed sump (which allowed too much settling). The case/impellor was so locked up that I had to soak it in pure vinegar for several hours to even get it open. So while waiting on that, I opened the Eheim 1262 (900 gph) that I ordered as a backup So now my scrubber pump is pumping 2X as much as my return.

Once the new pump was in place, there was a forceful waterfall across the screen again. There is so much water in the acrylic box now that it is 1" deep before it goes out the drain hole (whereas before it was almost dry).

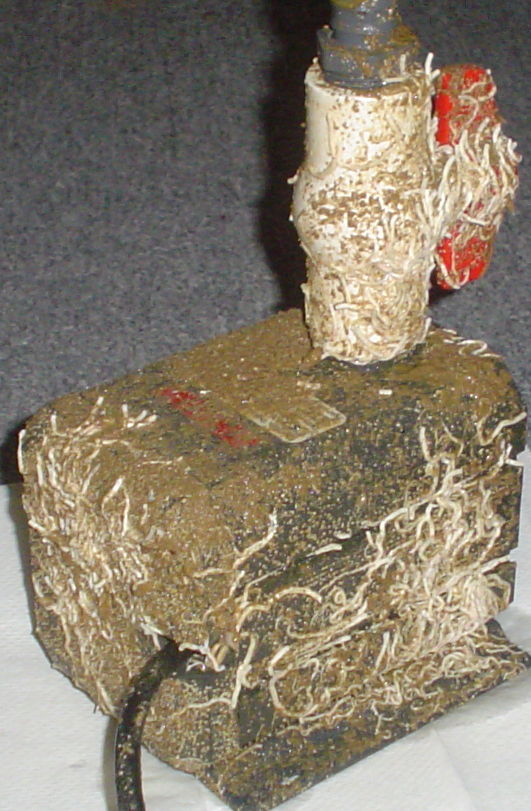

Point is, check your scrubber pump often for internal fan worms or food buildup. Just like the lights, you may not be able to see the lower output (since it happens very slowly over time), so you have to open it up and check. Running the pump in vinegar every three months should keep it clear (vinegar disolves fan worms).



[SantaMonica]

Tarraza on the AS site: "THANK YOU SM. without this site my tank was a mess. Now I can enjoy this hobby for ever. 8 months now and i forget what NITRATE, PHOSPHATE IS ALL ABOUT, AHH!!, WATER CHANGE? NOT FOR ME ANY MORE!!!!! GOD BLESS YOU GUYS!!!!"

Firestarter on the SG site: "I was rather hesitant to change to an algae scrubber at first and doubted it would really work, as it was too good to be true. Almost 1.5 weeks of converting to the scrubber, I can see such great results! My corals are finally doing better, pods population has almost tripled, and I don't even need to clean the tank glass at all (usually by now it would be covered my a thin film of brown diatoms). Its amazing what the results were. Forget expensive skimmers, denitrators etc, just a good light source and good flow will do. One of the main reasons why I changed to a scrubber was because of my high nitrate reading. When I finally bought a test kit and tested it, the reading was more than 100mg/l and now it has dropped significantly to 25mg/l. Another advantage was that I could skip the skimmer pump which resulted in my water temp dropping 0.5 - 1 deg."

Craig on the NZ site: "My tank water is so clear and clean looking, and the sand is clean.
I have a Dragon Goby and he has gotten fat ever since I moved to the scrubber and removed my skimmer, he moves a heck of a lot of sand. But I stirred up my sand like I occasionally do and this time there was no muck coming out as I stirred it. My [nuisance] algaes in my overflow have receded, and the coraline on the rocks has grown quite quickly over the last few days. Even the water in my sump (even thou there is a bit of crap on the bottom) is clear and clean."

Gannet on the NZ site: "i have gone from cleaning the glass on the front of the tank 2-4 times a week to once every 2 weeks ... my nitrates has gone from 80ppm and is now 0-5ppm ... and the pods and mysis, i have that many in my sump now that i scoop them up with a net and feed them to my fish works a treat."

ImDaring on the LR site: "I built mine [scrubber] because I had to clean my glass every day because of green algae, and then to top it off I had a Brown algae breakout... it had covered the bottom of my sand bed it; looked like slime. the first week of having my scrubber hooked up I only cleaned my glass 1 time, now on my 2nd week I have not had to clean it at all, and the brown algae is almost gone."



[SantaMonica]

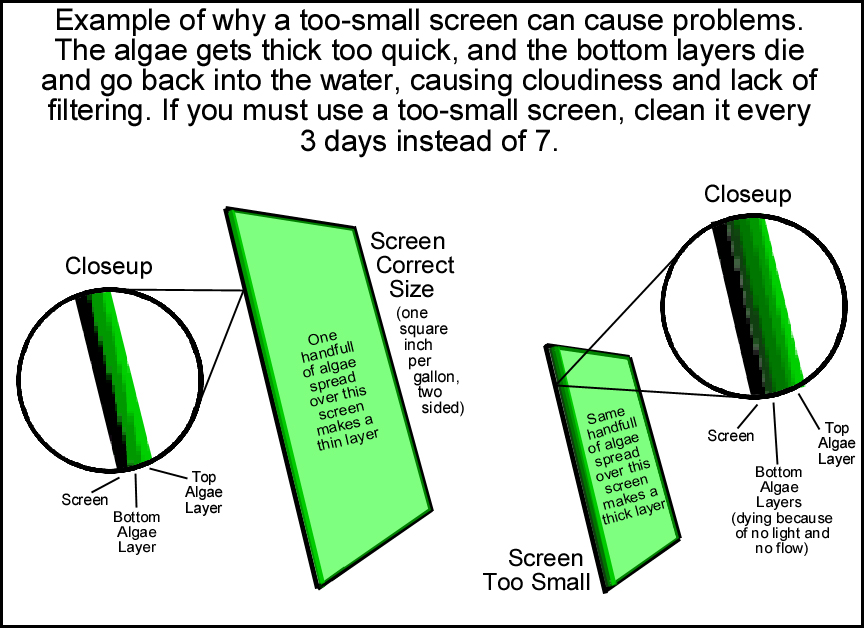

Update: Screens that are too small

This is an example of why a too-small screen can cause problems. The algae gets thick too quick, and the bottom layers die and go back into the water, causing cloudiness and lack of filtering. If you must use a too-small screen, clean it every 3 days instead of 7.

Click here if you can't see pic below



[SantaMonica]

Here are several updates:

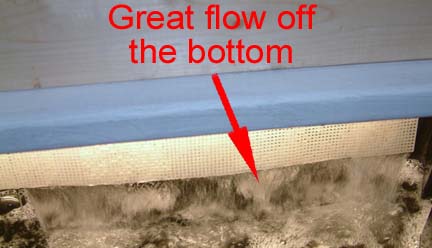

Milburnr on the SC site had this great pic of his flow:

Quick review of why scrubbers work:

1. The light is very near the screen, and is not blocked by anything.
2. The flow is very rapid, which transports more nutrients to and from the algae.
3. The flow (on a vertical waterfall) is very thin, which breaks up boundary layer,
and which lets the most light through.
4. 7-day cleanings keeps the bottom layers of algae from being shaded and dying.
5. Using FW to clean, kills the pods that normally destroy the algae.




Seeding a new screen is no longer recommended, because (1) you get good growth in a week anyway, and (2) the seeding just washes off and adds nutrients to the water.


Barbianj on the RS site made a great high-power CFL setup:

Long vacations: Some people want to use a scrubber, but are gone two or three weeks at a time. Here are the options: The easiest is to do nothing. In this case, after three weeks, the underlying layers of algae will have died. When you return, the water may be cloudy and colored, and the nitrate and phosphate may be increased, but after a screen cleaning and some carbon, it will be back to normal in a few days. This option is ok if you leave only once or twice a year. Nothing should be harmed, however. The next option is to remove the screen. For very long trips, and for cases where you have lots of LR and DSB, this might be best. Of course your tank may develop nuisance algae during the trip because of lack of filtering, and you'll have to start the screen from scratch when you return.

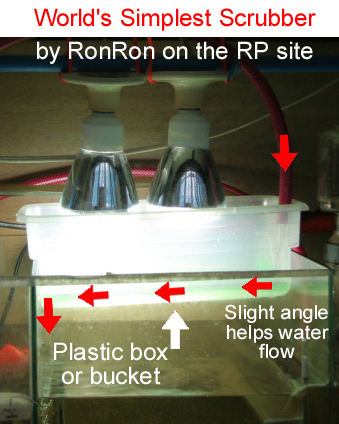

RonRon on the RP site built one with just a tupperware box:

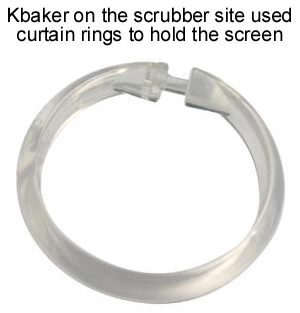

Here's another option to attach your screen: Curtain rings...



[SantaMonica]

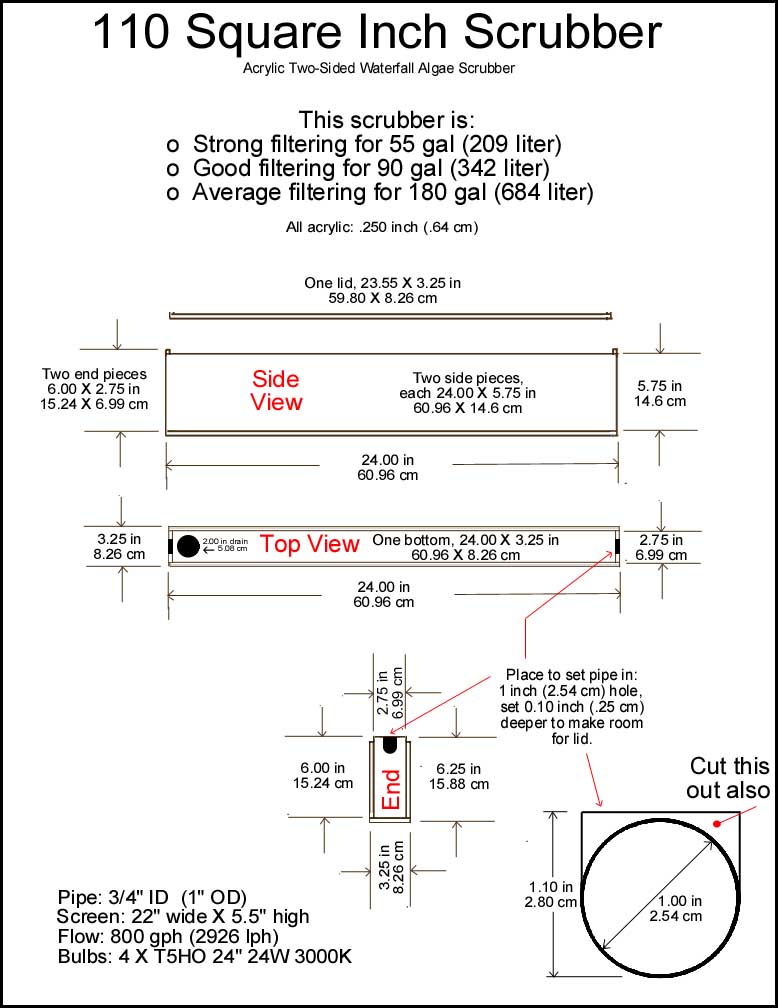

Many folks have asked about plans for my scrubber, so here are some:


Click here for easier to read version



[SantaMonica]

Scrubber News:

Awards: It's finally happened... A scrubber-only tank (no skimmer) has won Tank Of The Month. "Mudshark", whose pics have been posted here for a while, just won the August Tank Of The Month at MASA site.

RC: They have done a few things to keep people from finding out about scrubbers. They've made it so that when you try to post "algaescrubber.net", it is changed to "clay-boa.com". Also, if you try to search for anything scrubber related there, it seems to always have an "error".
