sump pics for 0b1

[ste2k3]

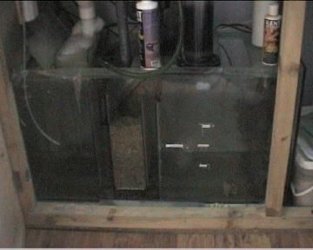

this is the sump you can see the chambers as described in the hardware forum.



[ste2k3]

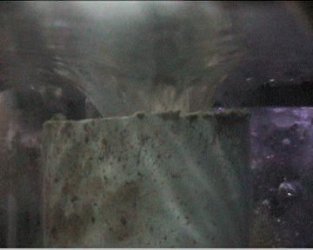

inlet at the top of the tank just below the surface.



[ste2k3]

this is the water being drawn from the surface draining down the 11/2" pipe.



[ste2k3]

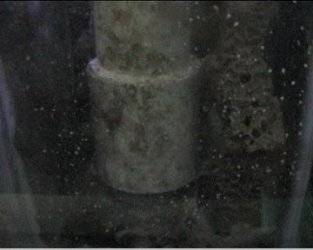

this is where the pipe screws on to the threaded connector and i forgot to mension , you will need filter boxes building round the pipes to stop fish being sucked in these are simple glass boxes round the pipe with a filter comb on top.



[ste2k3]

this is where the water enters the sump through the pre-filter.



[ste2k3]

and one more, this is a shot of the overflow pipe and filter box complete with filter comb at the top.



[MountGuppy]

wow thats a big filter how big of a tank does it clean B)



[ste2k3]

only 60gallon after rock displacement 90 without rock



[The_Budmaster]

sweet!



[ste2k3]

this pic shows the pipes entering through the back glass



[Ob1]

thanks ste2k3

I'm going to opt for 2 X eheim wet/dry thermo filters.


once i find the right tank and base - it is harder then I had expected.



cya m8
