Finally got to buying and building my new 38 gallon tank. It's supposed to be for my black piranha but maybe things will change. Just thought I'd post how I built the stand and top. It's also on my website. Materials came out to about $20 CAD.

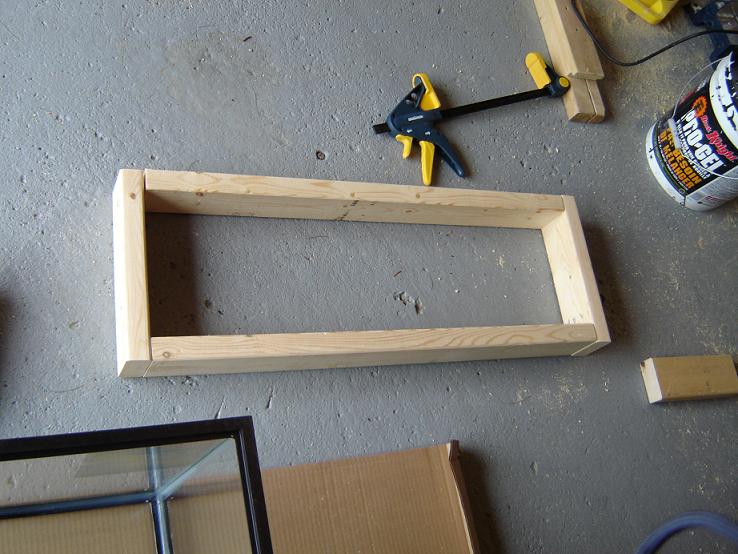

Here is the bottom half of the stand. I used 6 Inch lag bolts to keep it together


Attachments

  • baseframe.JPG
    68.2 KB · Views: 33

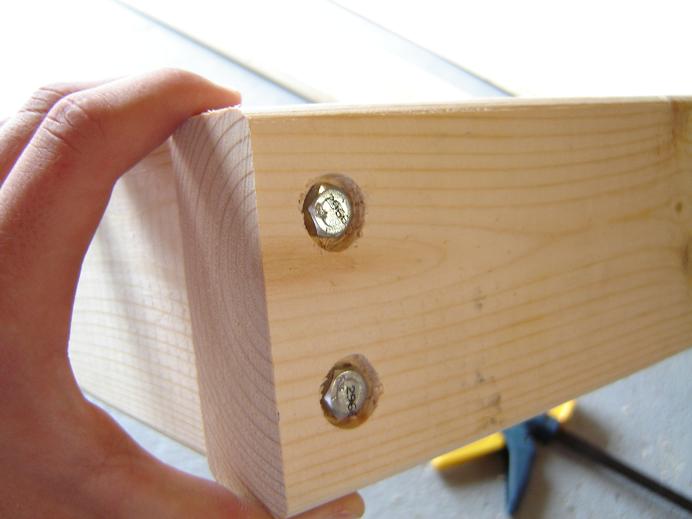

This is a close up of how I countersank the bolts so they wouldn't stick out. I pre-drilled a hole, then used a 5/8" drill bit to a depth of about 1/8", just enough to make the bolt flush with the wood.


Attachments

  • finishcorner.JPG
    29.6 KB · Views: 29

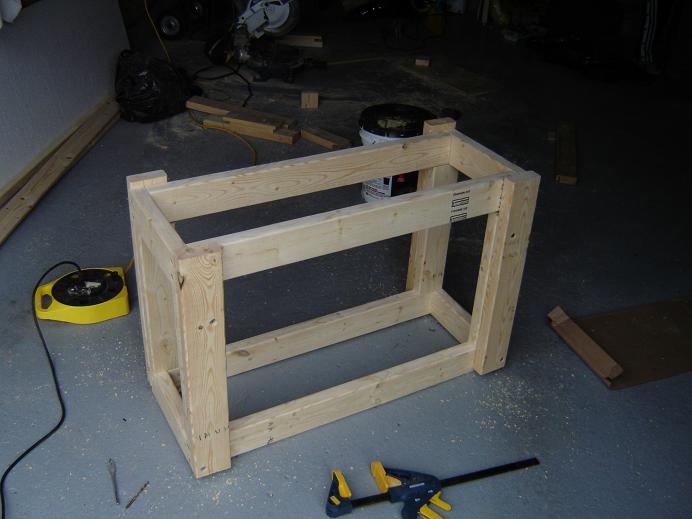

This is the unstained finished stand. I used double leg supports just to avoid any swinging of the tank.


Attachments

  • unstainedframe.JPG
    38.9 KB · Views: 27

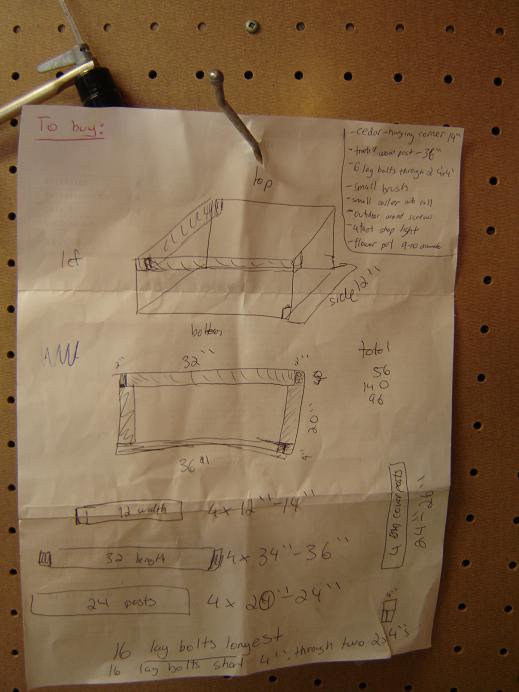

Here is the sketch of the build plan. This time I decided to put my plan on paper. Feel free to use if you can make sense of it. ;)


Attachments

  • plandiagram.JPG
    39.9 KB · Views: 28

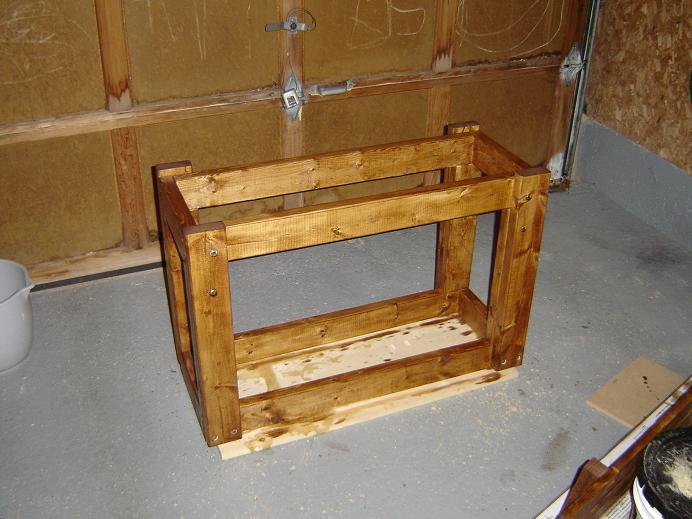

This is the stand, stained and sealed against water with polyurethane.


Attachments

  • stainedframe.JPG
    54.6 KB · Views: 28

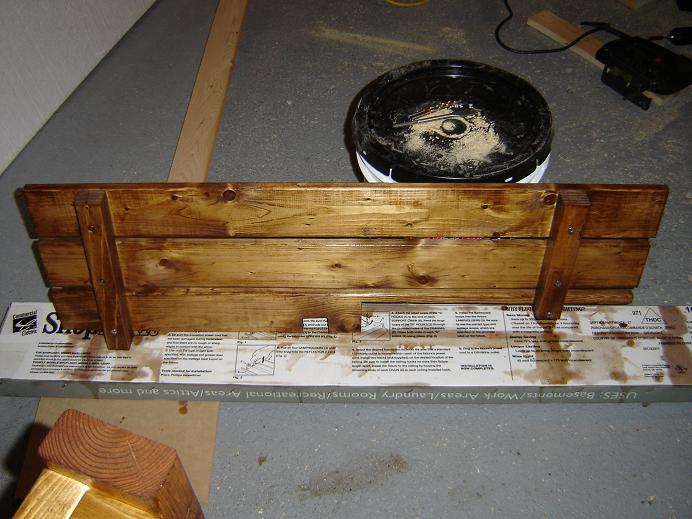

And this is the canopy/crate. I didn't feel like building a fancy hinged canopy for this tank.


Attachments

  • stainedtop.JPG
    60.9 KB · Views: 28

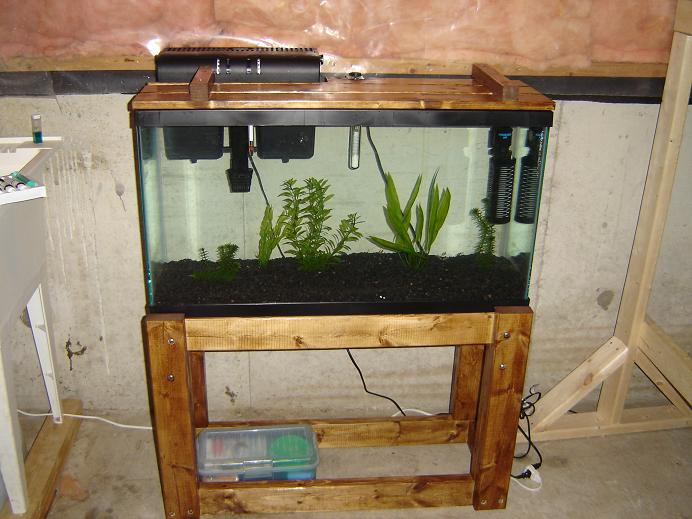

And here is the final product with the tank filled and filtration going. It has an emperor 400 and a powerhead quickfilter. There's going to be a flourescent light on top, but I didn't wire it yet :/
It took me total about 3 hours including the staining and sealing. It's not the most attractive, but it does the job, and that's why it's in the basement :nod:


Attachments

  • finishedsetup.JPG
    58.8 KB · Views: 33
Very cool! Looks good to me! I'd like to try building and wiring a hood for my 29 gallon, but I don't have the tools I need. I suppose I could go to my parents' for a weekend and do it there.....

Anyway, good job!

Pamela
aka Married Lizard

hey guys..i stole konrad's idea and tried to make a stand for my 24x12 tank using his pictures as model. As an amateur in this kind of thing, I did have some difficulties. Anyway, the pictures clearly shows the flaws of the stand that I made (circled). Il try to sand those parts.. -_- It's not as good as his but it still does the work, hopefully...



thanks to konrad for posting and sharing his ideas..
You rock!
:p

haha thanks kent and everyone. If the tank were to go anywhere else but the basement, I would have filled the front hole with cabinet doors or vertical 2x4's. Glad my pics came to good use. :D
